Micro lenses for endoscopes
Plano-concave, bi-concave, bi-convex, meniscus and special micro lenses for compact medical endoscope lens groups and miniature imaging modules.
Bi-concave / bi-convex / meniscus / plano-concaveMedical endoscope optics | China - Nanjing
Tiny glass optics for medical endoscope assemblies.
Chuangzhifeng focuses on 0.x-2.x mm class miniature glass parts: micro lenses, windows, prisms, coated parts and bonded optics used inside compact medical endoscope modules.
Custom micro optics | sample-to-batch support
Micro lenses, windows and prisms built around your optical path.

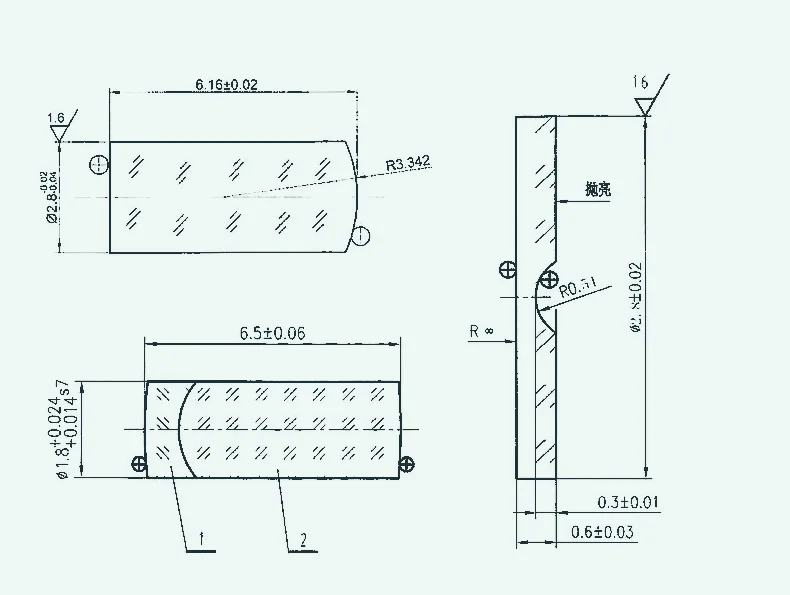

Send drawings, samples or assembly constraints. We support grinding, polishing, coating, blackening, bonding and inspection for miniature medical optical components.
- Focus
- 0.x-2.x mm micro glass
- Process
- Grinding to final inspection
- Orders
- Small-batch samples accepted
Precision and refinement; integrity and pragmatism
A specialist supplier for very small medical optical glass.

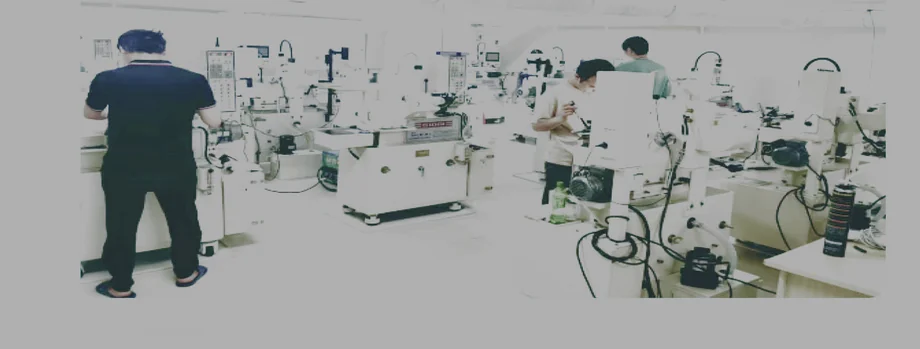

Nanjing Chuangzhifeng Photoelectric Technology Co., Ltd produces miniature endoscope optics, especially tiny glass parts with diameters in the sub-millimeter to 2.x mm range. The workshop covers raw material preparation, grinding, polishing, edge treatment, coating, bonding, inspection and packaging.
Product range
0.x-2.x mm class micro optics built from drawings, samples and optical requirements.
Core advantage
Medical endoscope miniature glass: tiny diameter, high consistency, sample-to-batch support.
Size focus
Sub-millimeter to 2.x mm class tiny glass parts, customized from drawings, samples or assembly needs.

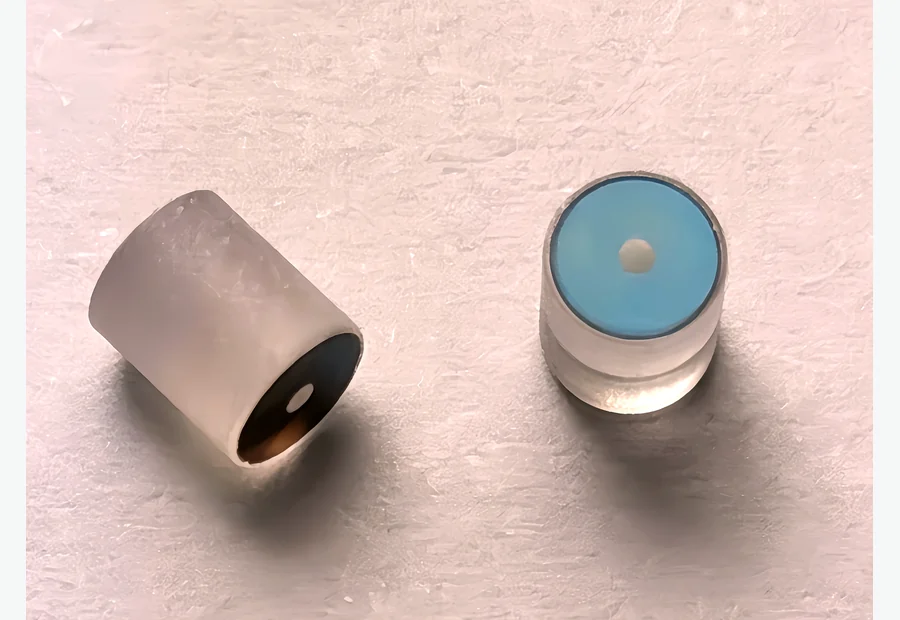

Coated windows and blackened parts
Small optical windows, aperture windows and blackened micro parts for stray-light control, sealing positions and optical channels inside endoscope assemblies.
Aperture windows / blackened edges / coated windows

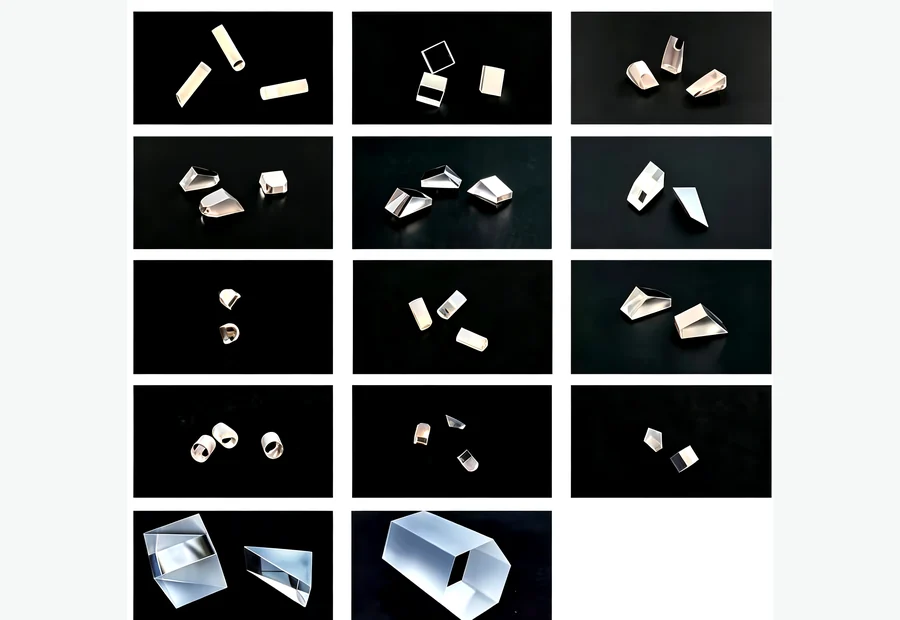

Custom prisms and shaped optics
Non-standard prisms, shaped windows and cemented components made to customer drawings or samples, with prototype quantities before larger production.
Custom prisms / windows / drawing-based production

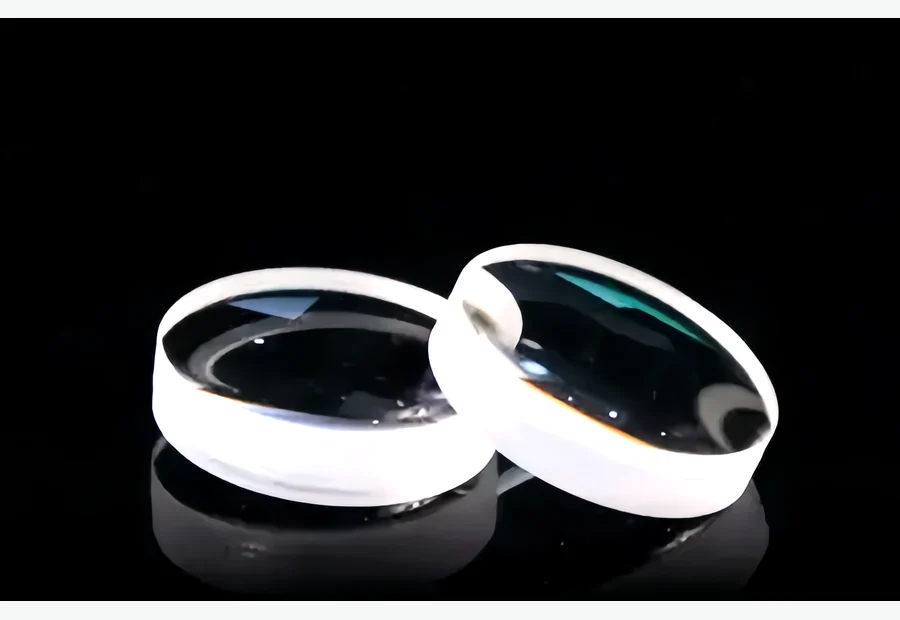

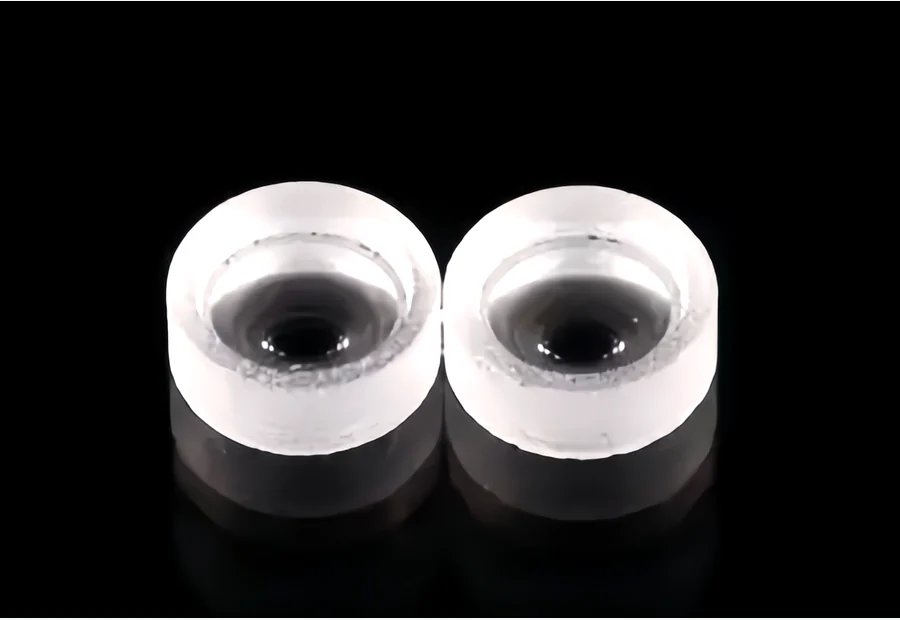

Double concave lenses
For compact beam shaping and miniature imaging paths.

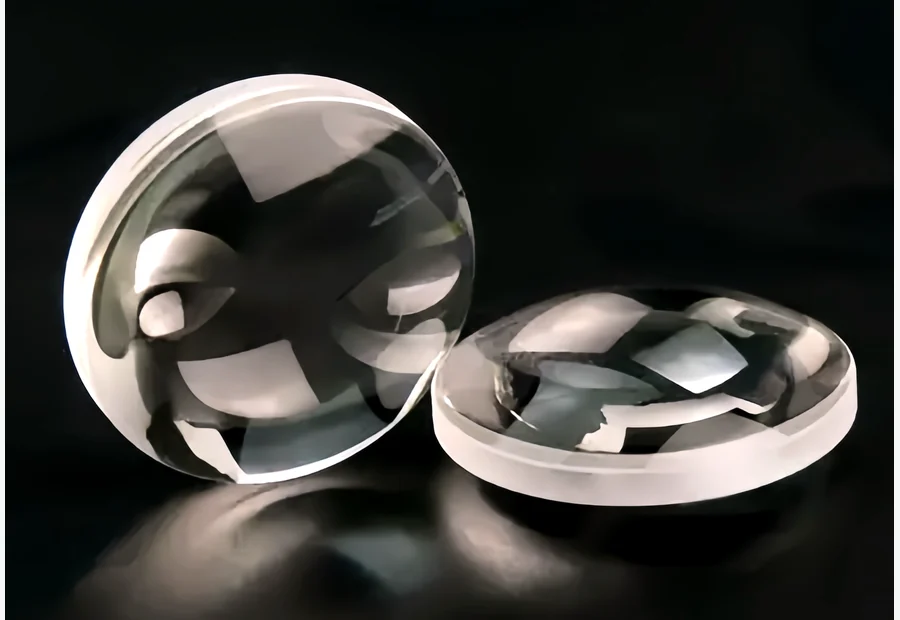

Double convex lenses
Small diameter focusing lenses for medical optical modules.

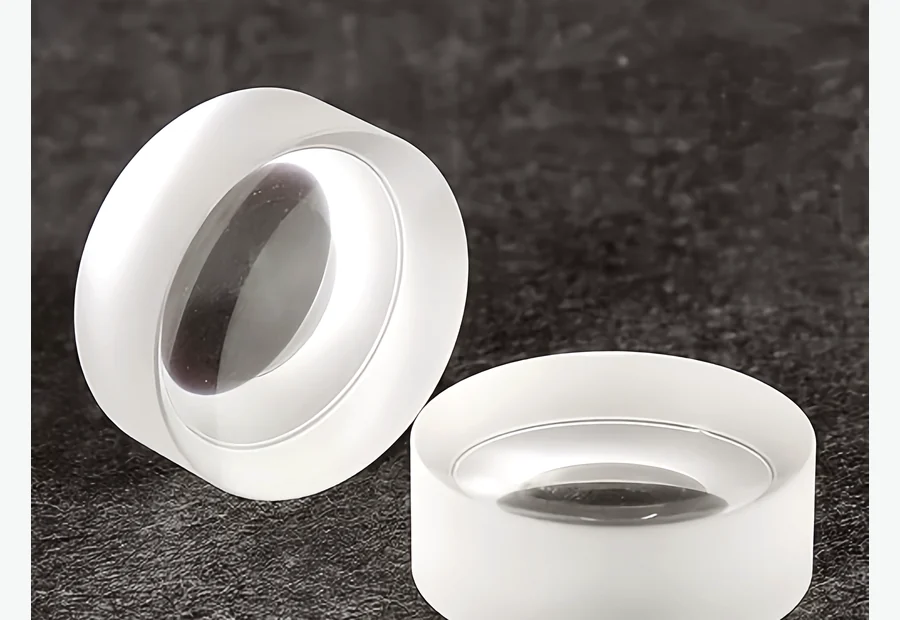

Plano-concave lenses
Custom edge, coating and diameter requirements accepted.

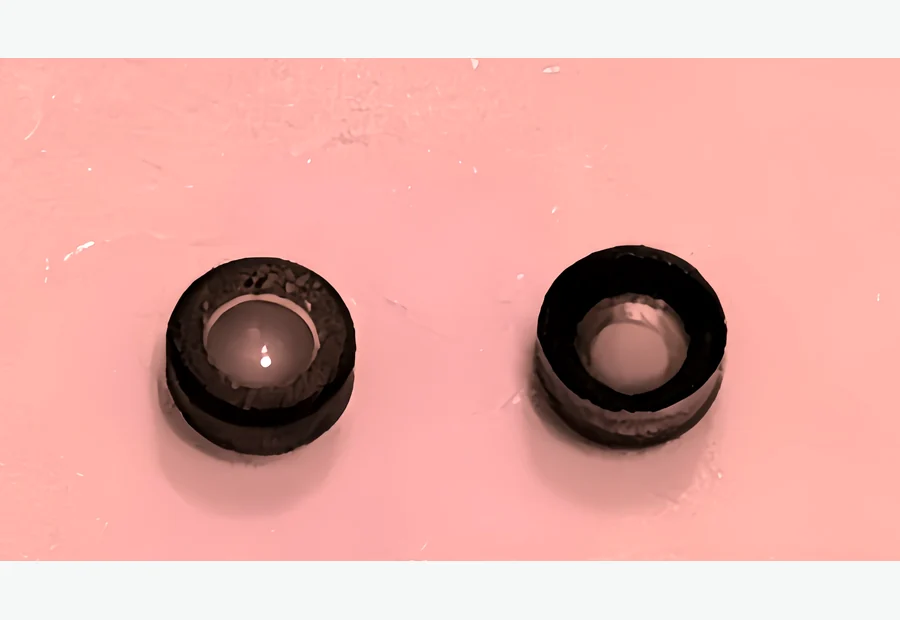

Blackened micro optics
For glare control, aperture management and endoscope assemblies.
Manufacturing capability
Controlled processing for miniature parts that leave little room for error.
The catalog highlights a mature process route from raw material to final inspection. The key challenge is repeatable processing of very small glass parts, especially 0.x-2.x mm class components for endoscopes.
- 0.x-2.x mm micro glass processing
- Rough and fine grinding
- Polishing and edge grinding
- Optical coating and bonding
- Inspection, testing and packaging
Coating support
AR, filter, long-pass and beam-splitting coating examples.
The brochure shows coating references such as 400-700nm and 400-750nm ranges, long-pass filters, single-wavelength anti-reflection coatings at 635nm and 1064nm, and visible-band beam-splitting films.
400-700nm HR example
400-750nm filter / long-pass
635nm single-point AR
1064nm single-point AR
Quality first, serve customers
Inspection-ready communication from sample to shipment.
Drawing review
Confirm size, material, coating, tolerance, surface and quantity before sample production.
Process control
Use staged grinding, polishing, coating, bonding and edge treatment for consistent output.

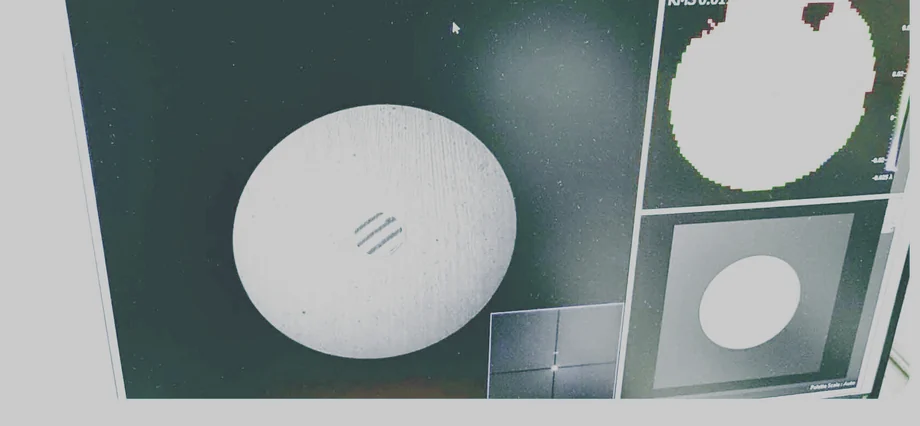

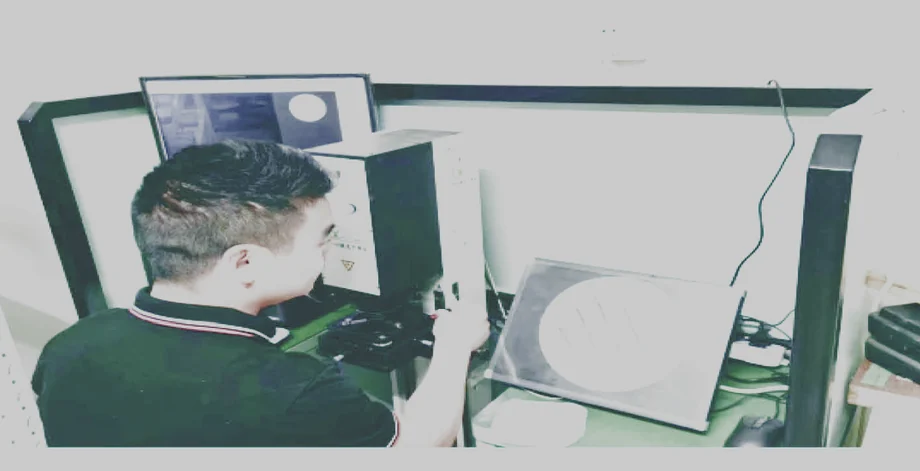

Inspection package
Prepare dimensional, appearance and spectral checks according to the submitted requirement.

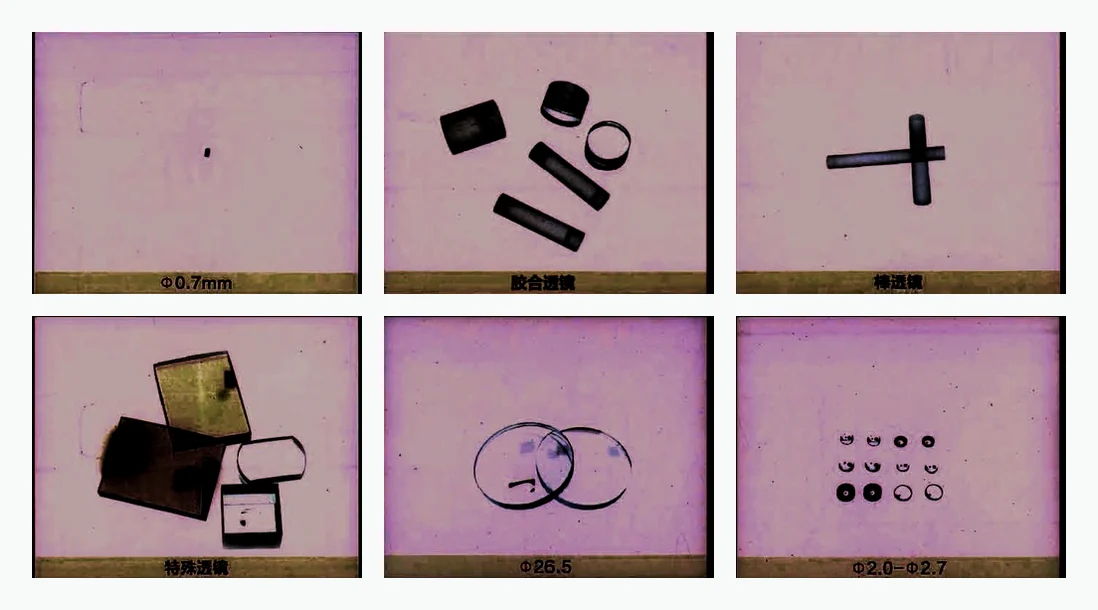

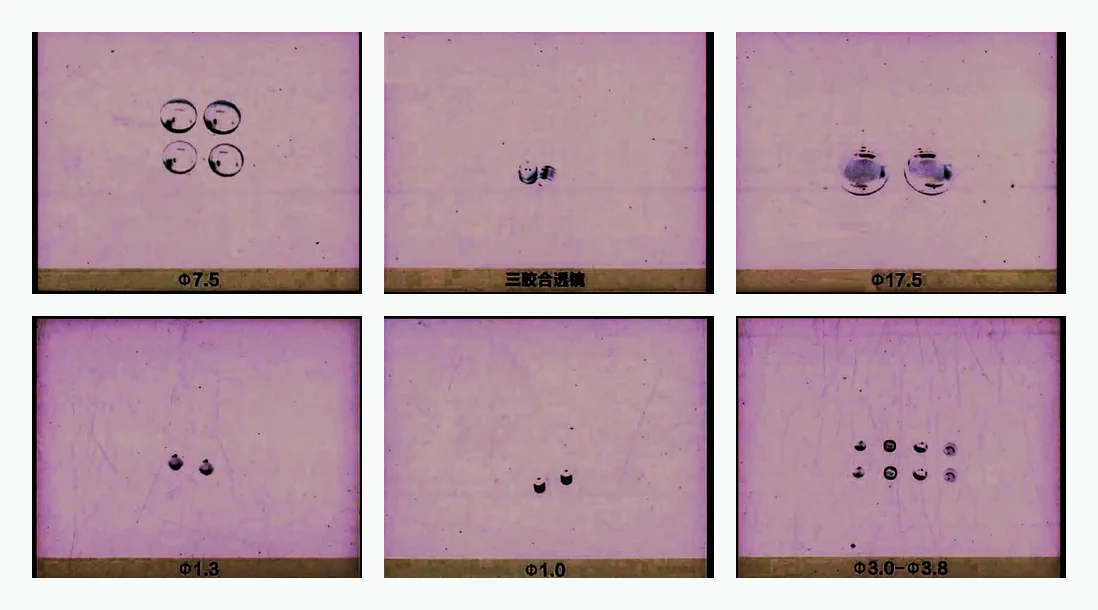

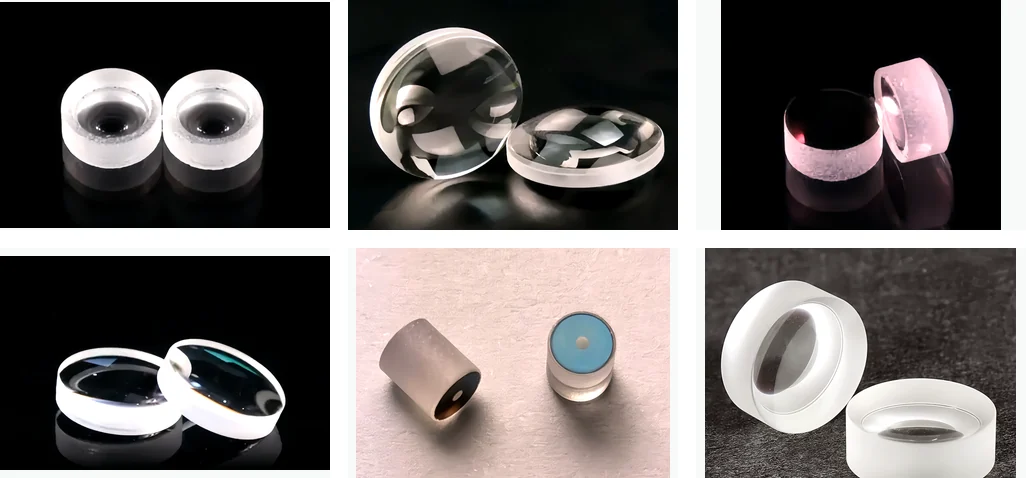

Miniature product gallery
Representative tiny glass parts for medical endoscope optical paths.
RFQ
Send the drawing, sample photo or target optical specification.
For the fastest quotation, include application, diameter or geometry, material, coating wavelength, surface requirement, blackening or bonding needs, quantity and target delivery schedule.
